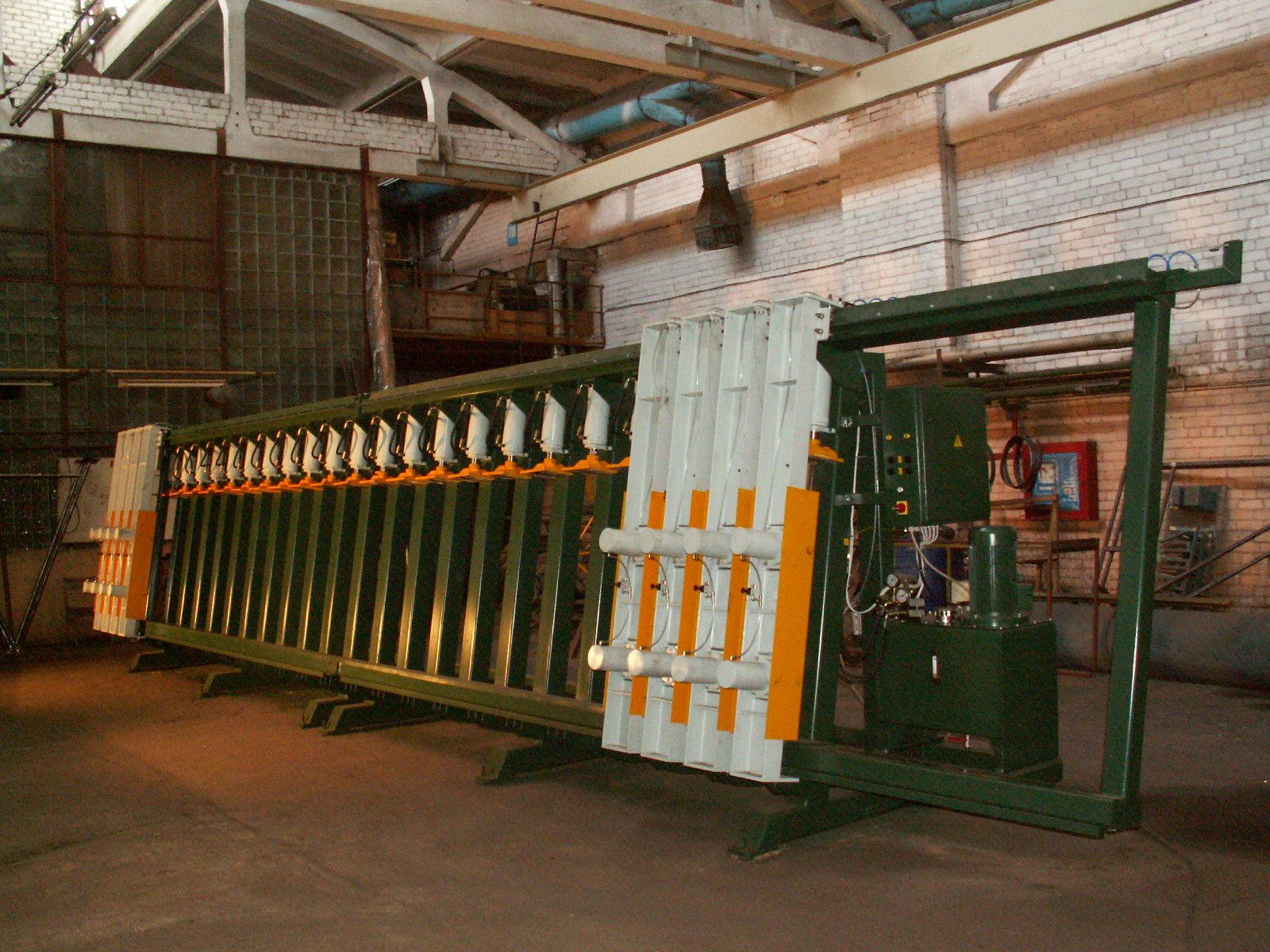

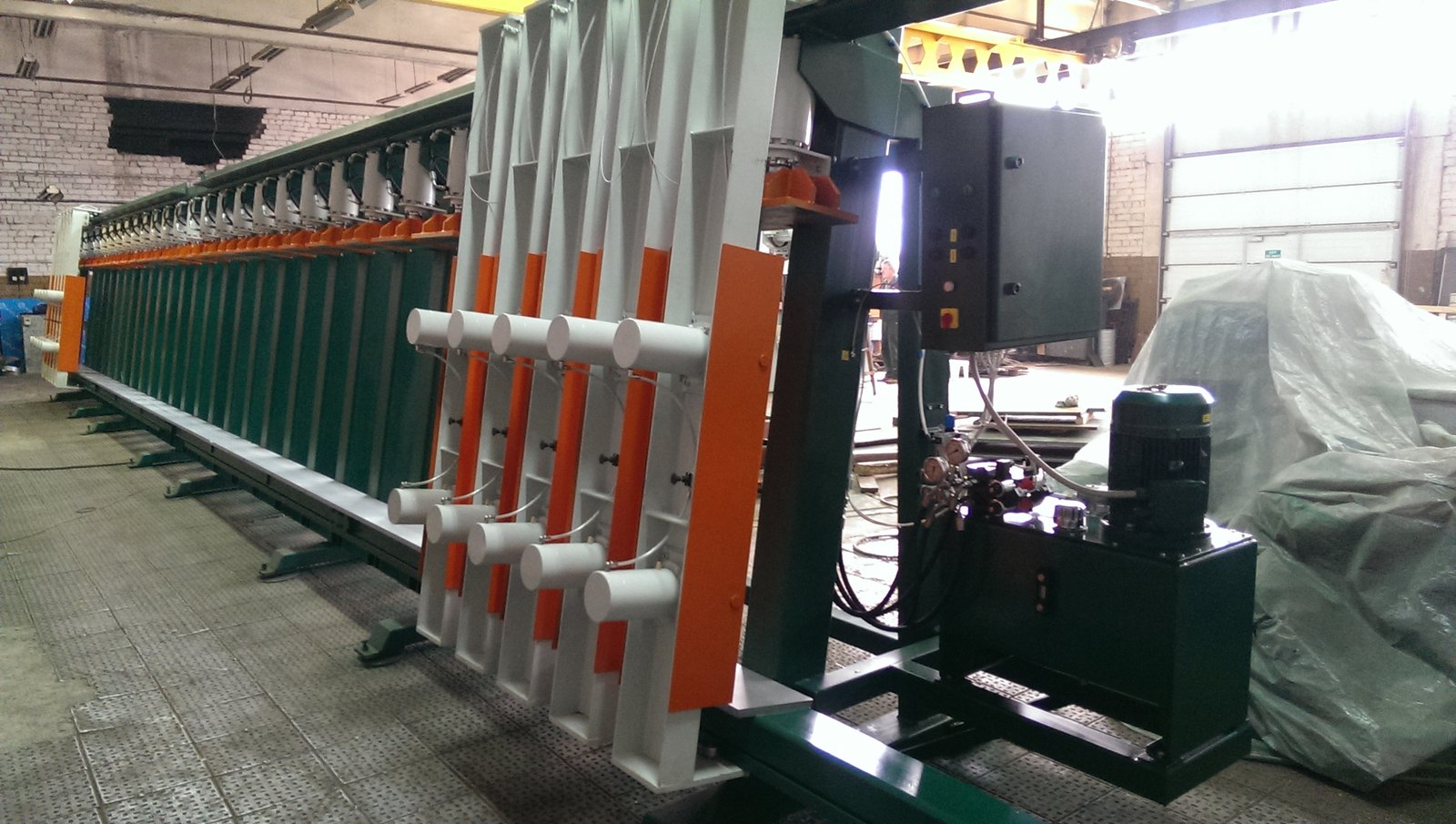

The hydraulic presses TPK is designed for gluing wood blanks by squeeze. The presses has the possibility of independent control first half and second half of hydraulic cylinders.
| TPK-6000 TECHNICAL SPECIFICATIONS | |
| Packet dimensions, mm | 6000x160x1200 |
| Max. squeeze pressure, N/cm2 | 105 |
| Quantity of hydraulic cylinders | 12 (6+6) |
| Type of front oppressors | pneumatic |
| Quantity of front oppressors | 6 (3+3) |
| Force of front oppressor, N | 0… 8800 |
| Motor, kW / V | 5,5 / 380 |
| Pressure of hydraulic system, MPa | 6…16 |
| Pressure of pneumatic system, MPa | 0,2…0,6 |
| Overall dimensions LxBxH, mm | 8900x1420x2380 |
| Weight, kg | 3900 |
| TPK-9000 TECHNICAL SPECIFICATIONS | |
| Packet dimensions, mm | 9000x200x1200 |
| Max. squeeze pressure, N/cm2 | 105 |
| Quantity of hydraulic cylinders | 18 (9+9) |
| Type of front oppressors | pneumatic |
| Quantity of front oppressors | 8 (4+4) |
| Force of front oppressor, N | 0… 8800 |
| Motor, kW / V | 5,5 / 380 |
| Pressure of hydraulic system, MPa | 6…16 |
| Pressure of pneumatic system, MPa | 0,2…0,6 |
| Overall dimensions LxBxH, mm | 13000x1620x2380 |
| Weight, kg | 6000 |
| TPK-12000 TECHNICAL SPECIFICATIONS | |
| Packet dimensions, mm | 12000x200x1200 |
| Max. squeeze pressure, N/cm2 | 105 |
| Quantity of hydraulic cylinders | 24 (12+12) |
| Type of front oppressors | pneumatic |
| Quantity of front oppressors | 10 (5+5) |
| Force of front oppressor, N | 0… 8800 |
| Motor, kW / V | 5,5 / 380 |
| Pressure of hydraulic system, MPa | 6…16 |
| Pressure of pneumatic system, MPa | 0,2…0,6 |
| Overall dimensions LxBxH, mm | 16000x1620x2380 |
| Weight, kg | 9000 |
